Steel T Bar AS 4680 For Australia
Steel T Bar AS 4680 For Australia
Feature
-
steel t bar is a kind of steel cast into T-shape. It gets its name because its cross section is the same as the English letter “t”. There are two types of steel t bar:
1.steel t bar is directly split from H-shaped steel, which has the same use standard as H-shaped steel (GB/T11263-2017) and is an ideal material to replace double angle steel welding. It has the advantages of strong bending resistance, simple construction, cost saving and light structure weight.
2. Hot-rolled steel t bar, which is mainly used in machinery and filling hardware steel.
Steel t bars are used to support double brickwork in areas where the opening below will not be infilled. The base of the T-bar closes the cavity. Due to constantly being exposed to environment elements, all of our T-bars are hot dip galvanized so that there are never any issues with rust or corrosion.
1) Material: Q235/Q345/A36/SS400/S235JR/S355JR/G250/G350/ASTM A5
2) R3 Durability: AS/NZS2699.3
3) Flange thickness: 6mm-35mm or as customized
4)Length: 0.9m-12m or customized
5)Surface: Hot dip Galvanized
|
Description |
Size |
Standard Lengths |
| Galvanized T bar Steel | 200x6(H), 200x6(V) mm | 900, 1200,1300,1400, 1500,1600,1800, 2100mm |
| Galvanized T bar Steel | 200x6(H), 200x8(V)mm | 2400, 2700, 3000, 3300, 3600, 3900mm |
| Galvanized T bar Steel | 200x6(H), 200x10(V)mm | 4200, 4500, 4800, 5100, 5400, 5700mm |
| Galvanized T bar Steel | 200x10(H), 200x10(V)mm | 5100, 5400, 5700, 6000, 6300, 7200mm |
| Galvanized T bar Steel | 200x10(H), 250x12(V)mm | 5200,5400, 6000mm (can be cut to length) |
| Galvanized T bar Steel | 300x10(H), 250x10(V)mm | 6000mm (can be cut to length) |
| Galvanized T bar Steel | Custom | Any size or length |
* Off the shelf solution available in a standard range of lengths
* Fully hot dip galvanised in accordance with AS/NZS4680
* Achieves R3 Durability Rating in accordance with AS/NZS2699:2002
* Load Tested in accordance with AS/NZS 1170.1:2002
* Fully welded and not reliant upon composite action.
* Compliant with relevant Australian Building Codes & Australian Standards
* Fully Engineered & University tested
* Full product warranty
* Labelled & Bar Coded
Advantages of our Galvanized T bar Steel:
* Superior performance
* Easy transportation, storage and handling
* Long life and durability
* Cost effective
* Easy identification
* Peace of mind

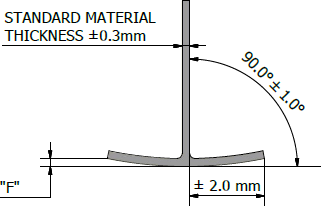

1）Flatness, Angle & Geometry
Flatness: "F" = ±2.0mm from Flat
Angle: 90 Degree ±1 Degree
Geometry: ±2.0mm on any dimension
Thickness: ±0.3mm of Nominated Thickness

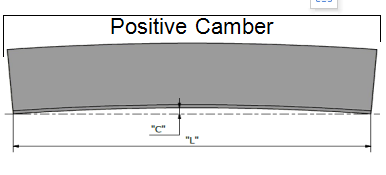

2）Positive Camber
Positive Camber: "C" = Less than "L" / 1000

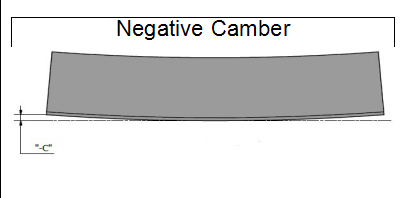

3）Negative Camber
"-C" = Zero (0) No Negative Camber Allowed

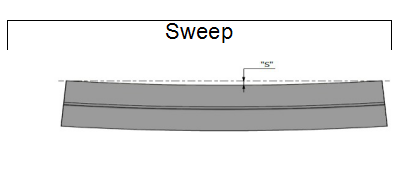

4）Sweep
Sweep: "S" = Less than "L" / 1000
