Q345GJB High Performance Building Structural Steel Plate For High Rise Building

High-performance steel for building structures has properties such as easy welding, earthquake resistance, and low-temperature impact resistance. It is mainly used in large-scale construction projects such as high-rise buildings, super high-rise buildings, long-span stadiums, airports, exhibition centers, and steel structure factories.

We can provide direct supply services for finished products
We can act for import customs clearance
We are familiar with the Philippine market and have many customers there
Have a good reputation

Q345GJB High Performance Building Structural Steel Plate For High Rise Building

Feature

  • High-performance steel for building structures has properties such as easy welding, earthquake resistance, and low-temperature impact resistance. It is mainly used in large-scale construction projects such as high-rise buildings, super high-rise buildings, long-span stadiums, airports, exhibition centers, and steel structure factories.

Specifications

1)Material: Q345GJB, Q345GJC, Q460GJB, Q460GJC, Q460GJE, Q550GJD, SN490, etc.
2)Packing: standard sea-worthy packing
3)Surface treatment: punched, welded, painted or as per customer’s requirement
4)Thickness: 10-100mm
5)Width: 1600-3500mm
6)Length: 6000-18000mm, according to customers’ requirement

high-mechanical-strength-structural-steel-plate

Classification

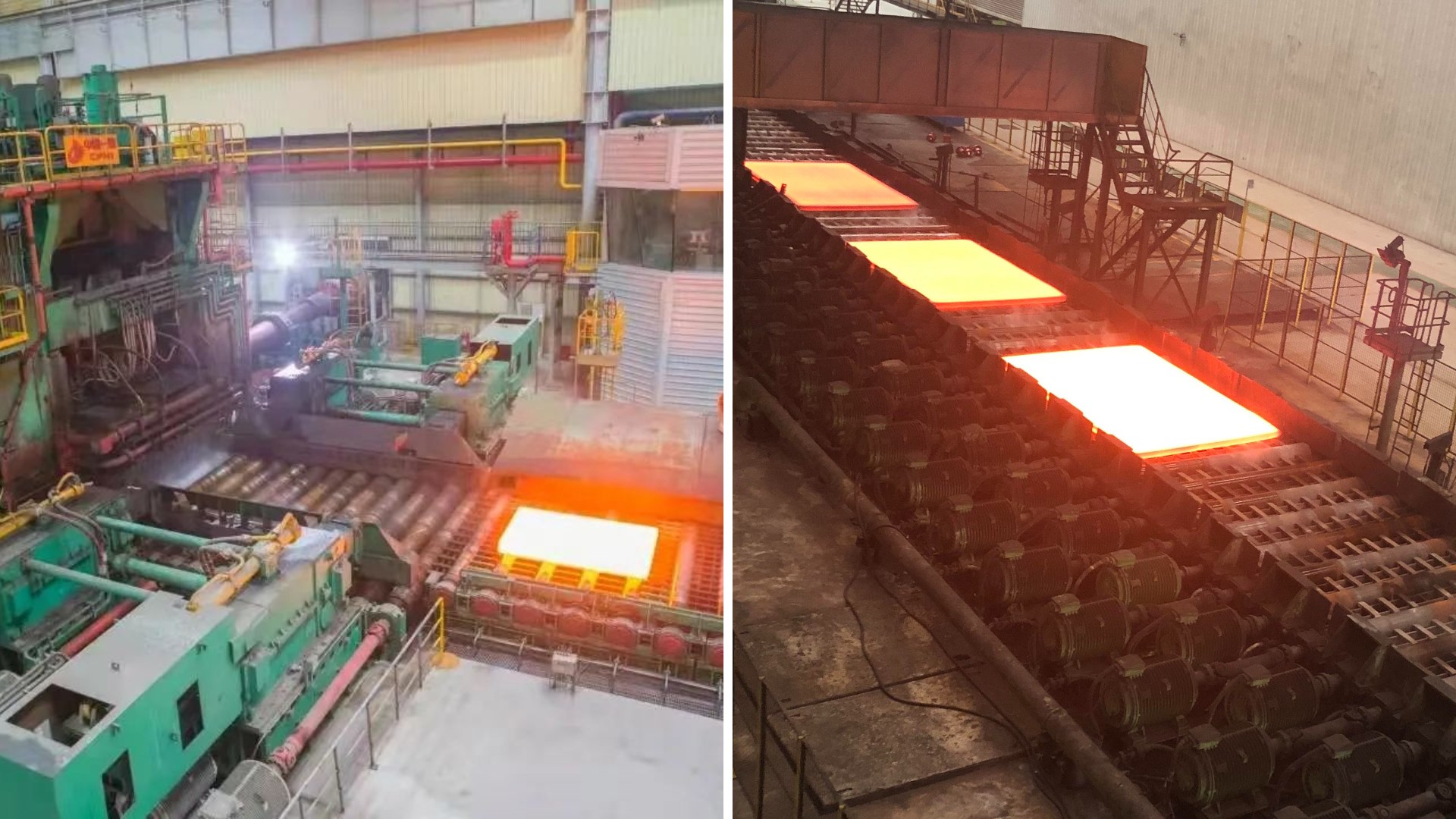

High performance building structures steel plates are usually produced by medium and heavy plate rolling mills, but the production of steel plates by steel coil mills and hot rolling mills is not excluded. High-rise construction boards are mainly some extra-thick plates, thick plates, medium-thick plates, and medium-thick plates.

Feature

The steel used in high-rise buildings is subject to complex stress conditions, and it is required to have the characteristics of high safety and reliability, long service life, and the ability to resist damage of a certain seismic intensity. This determines that the steel plates used in high-rise building structures require certain special properties, mainly The following points:
(1) It can resist the damage of a certain earthquake force, and it must be able to resist earthquakes and earthquakes. For this reason, the steel plate must not only have sufficient tensile strength and yield strength, but also have a lower yield ratio. The low yield strength ratio can make the material have good cold deformation ability and high plastic deformation work, absorb more earthquake energy, and improve the earthquake resistance of buildings.
(2) To have good welding performance, so that no preheating is required before welding and no heat treatment is required after welding, so as to facilitate on-site welding, thereby reducing labor intensity and improving labor efficiency.
(3) It must have high plasticity and toughness so that the steel plate has good mechanical properties.
(4) To have a smaller yield strength fluctuation range. When the fluctuation range of yield strength is large, the matching of yield strength between various parts of the building may be different from the design requirement value, which is prone to local damage and reduces the earthquake resistance of the building. Therefore, the Japanese standard stipulates that the yield strength fluctuation range is not greater than 120MPA.
(5) Within the range of beam and column joints connected by welding, when the joint constraints are strong and bear the tensile force along the thickness direction of the plate, the steel plate must have a certain level of lamellar tear resistance.

alloy-structure-steel-plate

Application

High-performance building structures steel has become the development direction of building structures in the world due to its special advantages in many aspects such as superior earthquake resistance, environmental protection, high construction efficiency, and high space utilization.
It is mainly used in large-scale construction projects such as high-rise buildings, super high-rise buildings, long-span stadiums, airports, exhibition centers and steel structure factories.
